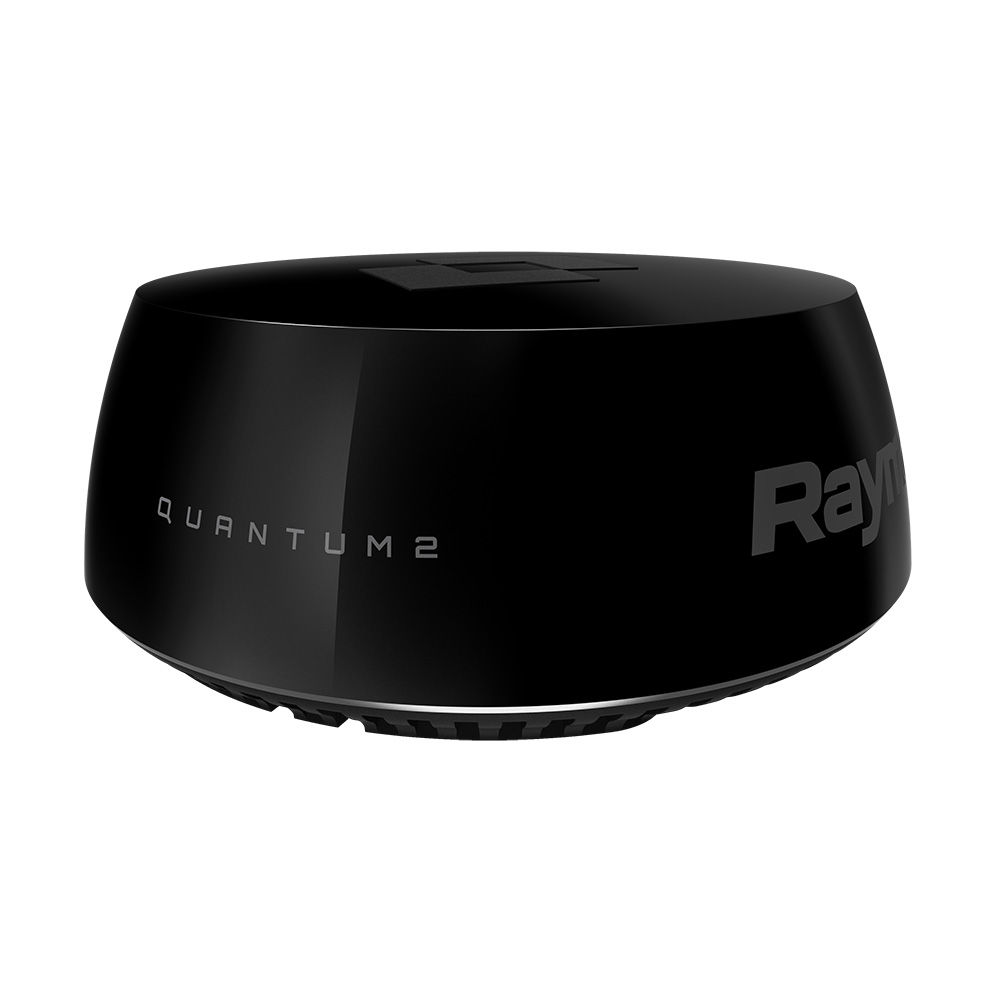

Raymarine Black Q24D Quantum 2 Doppler Radar w/15M Power & Data Cables

Name: Raymarine Black Q24D Quantum 2 Doppler Radar w/15M Power & Data Cables
SKU: 101789
Price: 2809.99 USD
Availability: InStock

$2,809.99

Quantity

Black Q24D Quantum 2 Doppler Radar with 15M Power & Data CablesKeep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.  Features:<ul><li>Black radome enclosure </li><li>WiFi and Ethernet </li><li>15M power and data cables are included</li><li>Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats</li><li>Available as a standalone scanner with power and data cable </li><li>Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range</li><li>Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points</li><li>Once installed, Quantum 2 starts right up and immediately provides awareness</li></ul>Quantum 2 Black: Stay Aware With StyleOffering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel. Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.    Superior Collision AvoidanceRaymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision. Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.What’s In The Box:<ul><li>18 in. black radome</li><li>Power cable 15M (49.2 ft)</li><li>Data cable 15M (49.2 ft)</li><li>Fixing bolts with spring washers and flat washers (M8) x 4</li><li>Documentation</li></ul>General Specifications:<ul><li>Dimensions (Diameter|Height): 541.0 mm|209.5 mm</li><li>Weight: 5.6 kg</li><li>Supply Voltage: Either 12 V dc or 24 V dc nominal</li><li>Minimum: 10.8 V dc | Maximum: 31.2 V dc</li><li>Operating Voltage Range: Minimum: 10.8 V dc | Maximum: 31.2 V dc</li><li>Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W</li><li>Waterproofing: IPX6</li><li>Operating Temperature Range: -10°C to +55°C</li><li>Storage Temperature Range: -25°C to +70°C</li><li>Additional Storage Conditions: Store upright; do not block vents on the underside</li><li>Humidity: Up to 95% at 35°C</li><li>Maximum wind speed: 100 kts</li></ul>Transmitter Specifications:<ul><li>Type: X-band solid-state transmitter with pulse compression technology</li><li>Transmit Frequency: 9354 MHz to 9446 MHz</li><li>Peak Power Output: 20W</li><li>Duplexer: Circulator</li><li>Pulse Widths (3 dB): 40 ns to 14.7 us</li><li>Chirp Lengths: 400 ns to 22 us</li><li>Pulse Repetition Frequency: 920 Hz to 5900 Hz</li><li>Chirp Bandwidth: Up to 32 MHz</li><li>Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON</li></ul>Antenna Specifications:<ul><li>Type: Patch Array</li><li>Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°</li><li>Polarization: Horizontal</li><li>Rotation Speed: 24 rpm nominal</li></ul>Receiver Specifications:<ul><li>IF Frequency: 26 MHz</li><li>Noise Figure: Less than 4 dB</li></ul>Doppler Specifications:<ul><li>Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets</li><li>Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel</li></ul>Compatibility Specifications:<ul><li>Radar Type: Quantum 2 with Doppler</li><li>MFD Compatibility: Axiom and Axiom Pro</li><li>Perfect for: Sailboats, RIBs, and smaller powerboats</li><li>Type: Solid State CHIRP Pulse Compression with Doppler target tracking</li><li>Range Performance: 24NM</li><li>Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft</li><li>Automatic Bird Mode: No</li><li>MARPA Target Tracking: Yes</li></ul>Radar Specifications:<ul><li>Transmitter Type: X-band solid-state transmitter with pulse compression technology</li><li>Target Tracking: Track up to 25 simultaneous Radar targets</li><li>Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON</li><li>Antenna Type: Patch Array</li><li>Noise: Less than 4 dB</li><li>Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°</li><li>Polarization: Horizontal</li><li>Duplexer: Circulator</li><li>Transmit Frequency: 9354 MHz to 9446 MHz</li><li>Pulse Repetition Frequency: 920 Hz to 5900 Hz</li><li>CHIRP Lengths: 400 ns to 22 µs</li><li>Pulse widths (3 dB)    </li><li>40 ns to 14.7µs</li><li>IF Frequency: 26 MHz</li><li>Rotation Speed: 24 RPM</li><li>Peak Power Output: 20 W</li></ul>Conformance:<ul><li>Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3</li></ul>Environmental Specifications:<ul><li>Relative Humidity: Up to 95% @ 35°C (95°F)</li><li>Additional Storage Conditions: Store upright; do not block vents on the underside</li><li>Waterproof Rating: IPx6</li><li>Storage Temperature: -25°C to +70°C (-13°F to 158°F)</li><li>Maximum Wind Speed: 100 knots</li><li>Operating Temperature: -10°C to +55°C (14°F to 131°F)</li></ul>Physical Specifications:<ul><li>Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)</li><li>Weight: 5.6 kg (12.35 lbs)</li></ul>
