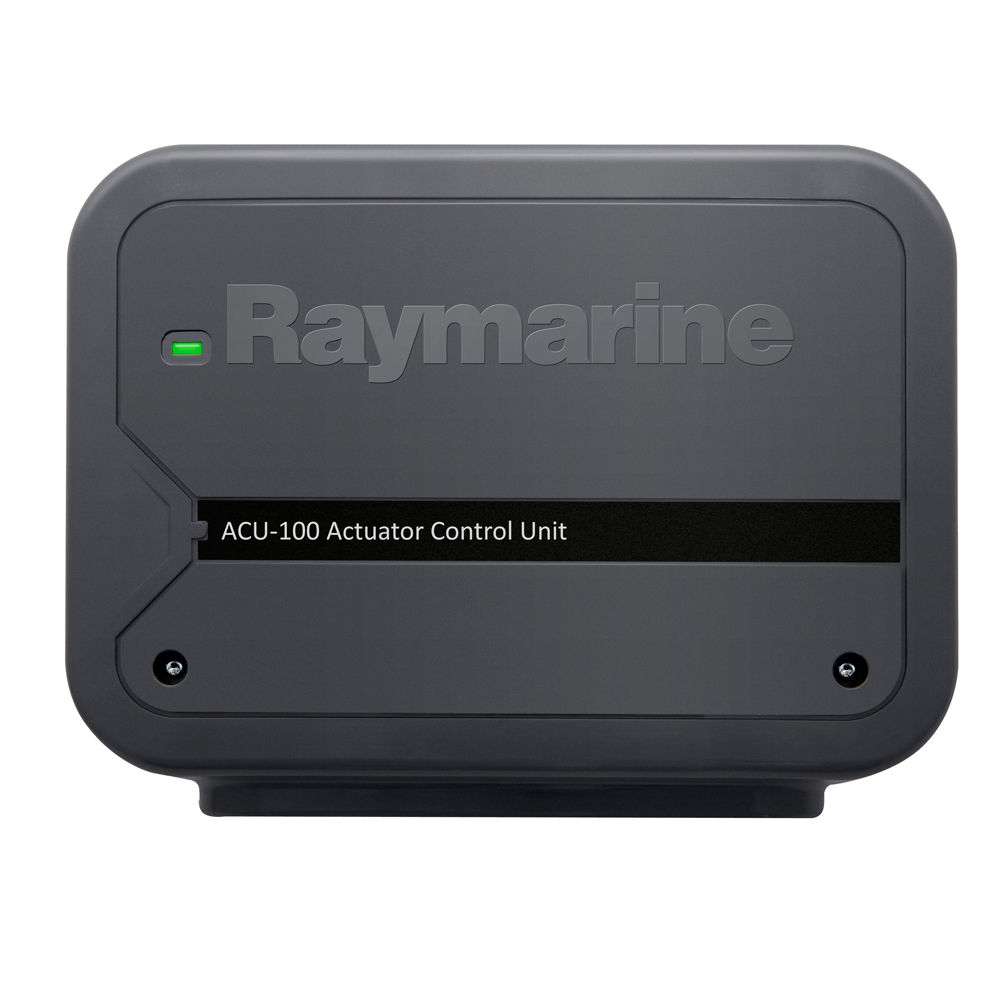

Raymarine ACU-100 Actuator Control Unit

<B>Autopilot Control Unit (ACU)</B><br> <br>The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk<B>^ng</B> bus. Choose the ACU that fits your steering system type.<br><br><B>Drive Current Output</B><br>Maximum continuous 7 Amps at supply voltage<br><B>Drive Clutch Output</B><br>No clutch connection<br><br><B>Connections</B><br><UL><LI>Rudder reference sensor<br><LI>Power<br><LI>Drive motor<br><LI>Ground</LI></UL><br><B>Nominal supply voltage</B><br>12 V<br><B>Operating voltage range</B><br>10.8V to 15.6V dc<br><B>Power Consumption (standby) - Main Power Supply</B><br>300 mA (12V)<br><B>Power Consumption (standby) - SeaTalk<B>^ng</B> Power Supply</B> <br>No power supply to SeaTalk<B>^ng</B><br><B>SeaTalk<B>^ng</B> LEN (Load Equivalency Number)</B><br>1<br><B>SeaTalk<B>^ng</B> Power Out</B><br>No power supply to SeaTalk<B>^ng</B><br><B>Data Connections</B><br>SeaTalk<B>^ng</B><br><br><B>Installation Environment</B><br><UL><LI>Operating Temperature: -20°C to +55°C (-4°F to +131°F)<br><LI>Storage Temperature: -30°C to +70°C (-22°F to +158°F)<br><LI>Relative Humidity: MAX 93%</LI></UL><br><B>Waterproof rating</B><br><UL><LI>Connector Panel: IPX2<br><LI>Drive Electronics: IPX6</LI></UL><br><br><B>Dimensions (W x H x D)</B><br>180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)<br><B>Weight</B><br>0.6 kg (1.32lbs)<br><br><B>Conformance</B><br><UL><LI>Europe: 2004/108/EC<br><LI>Australia and New Zealand: C-Tick, Compliance Level 2</LI></UL> <!--- cis2:mm5sl5hm --->
