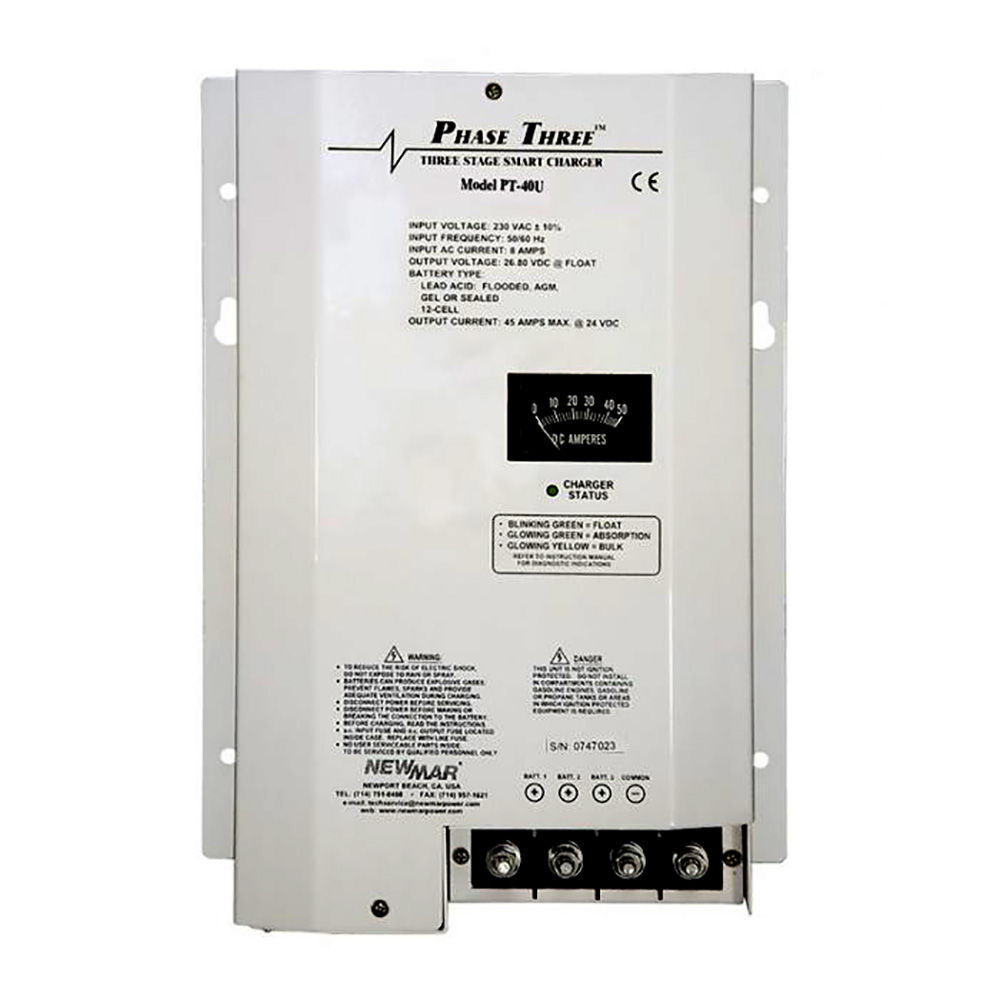

Newmar PT-40U Battery Charger

Name: Newmar PT-40U Battery Charger
SKU: 102335
Price: 1727 USD
Availability: InStock

$1,727.00

Quantity

PT-40U Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features:<ul><li>12-volt model</li><li>“Smart” circuitry provides three-stage charging – bulk, absorption, and float</li><li>Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages</li><li>Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)</li><li>The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)</li><li>Current limitations prevent damage from overloading</li><li>Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line</li><li>Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry</li><li>Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield</li><li>ABS-type approval for battery charging and power supplies</li></ul>Specifications:<ul><li>Input VAC (50-60 Hz.): 90-264</li><li>Input Amps @ Full Load: @ 115 VAC: 6.8, @ 230 VAC: 3.4</li><li>Power Factor: .98 @ 115V and .95 @ 230V</li><li>Max Output Amps: 40</li><li>Output Banks: 3</li><li>Battery Capacity (Amp-Hours): 80-400 </li><li>Operating Temp. Rating Reference: T-5</li><li>Case Size Reference: A-3</li><li>Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth</li><li>Weight Lbs./Kg: 11/6</li><li>Optional Temp. Sensor Model: TCS-12/24 </li><li>Remote Panel Model: EVM-12-2 </li><li>Equalize Option: No</li><li>Output Indicator Reference: M-3</li><li>Compliance Reference: CG</li></ul>Temperature Rating References:<ul><li>Temperature: -20 degrees C to +70 degrees C</li><li>Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C</li></ul>Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):<ul><li>Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load</li><li>Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load</li></ul>Compliance References:<ul><li>CG: USCG CFR 183.410 (Ignition protected)</li><li>CE: Carries the CE mark</li><li>ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.</li></ul>Options:<ul><li>Remote Panel, model EVM-12-2, for us with model PT-40 only (Enables monitoring of when the battery charger is “on” and the batteries’ state of readiness, at a glance of two (2) battery banks only)</li><li>Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)</li></ul>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
