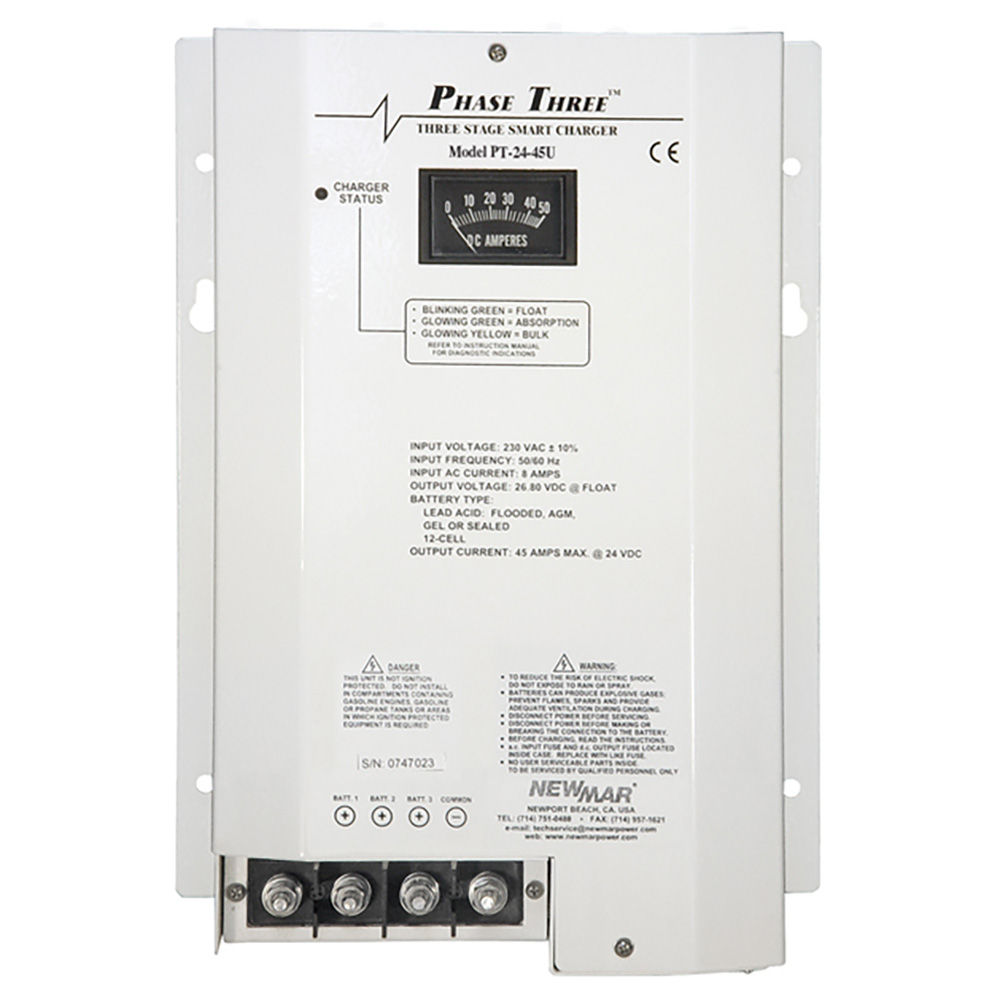

Newmar PT-24-45U Battery Charger

Name: Newmar PT-24-45U Battery Charger
SKU: 102330
Price: 2712 USD
Availability: InStock

$2,712.00

Quantity

PT-24-45U Battery Charger“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features:<ul><li>24-volt model</li><li>“Smart” circuitry provides three-stage charging – bulk, absorption, float</li><li>Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages</li><li>Multiple isolated output banks; ammeter indicates total output current</li><li>The optional sensor adjusts output voltage based on battery temperature</li><li>Current limiting prevents damage from overloading</li><li>Use as a power supply; can power loads without a battery in line</li><li>Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry</li><li>Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield</li><li>Install in conjunction with PT-MCU for additional control and monitoring</li><li>ABS-type approval for battery charging and power supplies</li></ul>Specifications:<ul><li>Input VAC (50-60 Hz.): 90 – 264</li><li>Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7 </li><li>Power Factor: .98@115V and .95@230V</li><li>Max Output Amps: 45</li><li>Output Banks: 3</li><li>Battery Capacity (Amp-Hours): 90 – 450</li><li>Operating Temp. Rating Reference: T-5</li><li>Case Size Reference: A-4</li><li>Case Size (H x W x D): 14.8B x 9.6 x 5.6D inches (37.6D x 24.4 x 14.2D centimeters) *Note with Dripshield installed D add 1” (2.54 cm) to height and .5” (1.2 cm) to depth</li><li>Weight Lbs./Kg: 12/6</li><li>Optional Temp. Sensor Model: TCS-12/24 </li><li>Remote Panel Model: RP</li><li>Compliance Reference: EN, CE, ABS</li></ul>Temperature Rating References:<ul><li>Temperature: -20 degrees C to +70 degrees C </li><li>Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C</li></ul>Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):<ul><li>Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load</li><li>Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load</li></ul>Compliance References:<ul><li>UL: UL 1950 (per DNB report)</li><li>CG: USCG CFR 183.410 (Ignition protected)</li><li>EN: EN 60335-1</li><li>CE: Carries the CE mark</li><li>ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.</li></ul>Options:<ul><li>Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)</li></ul>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
