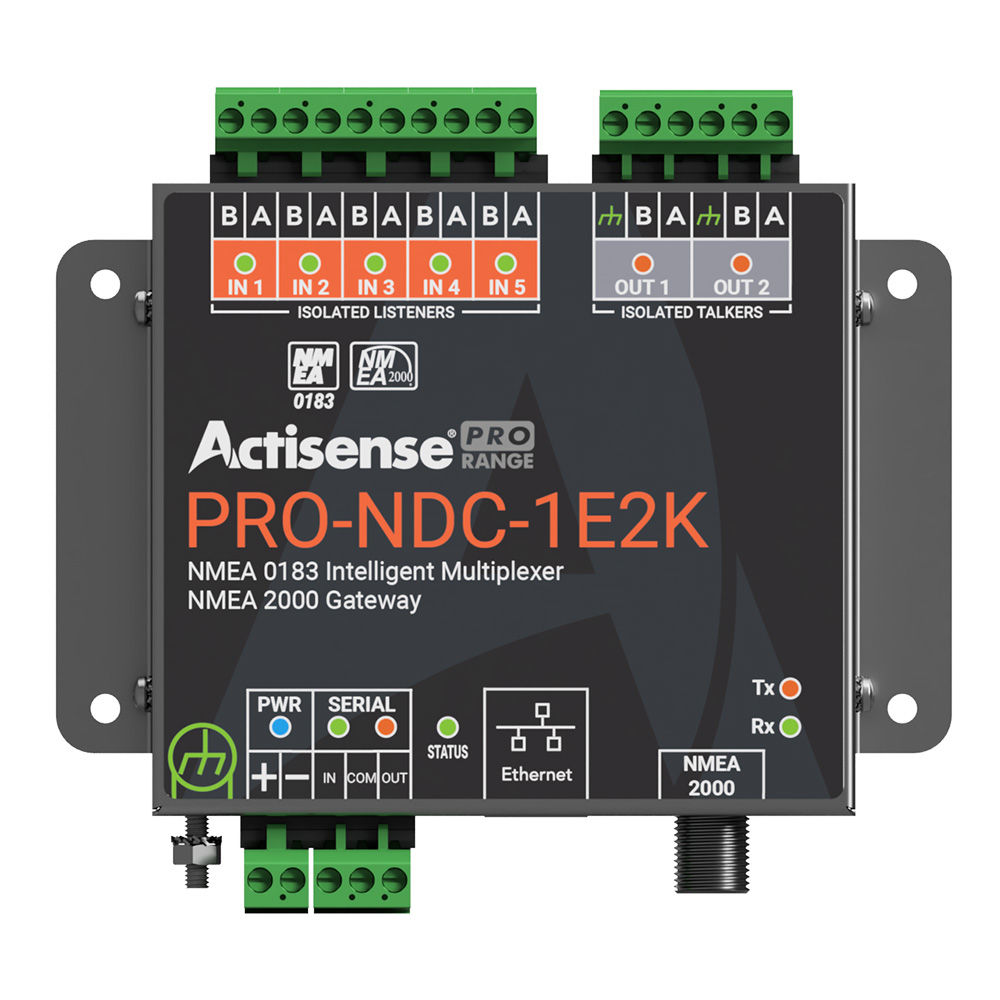

Actisense PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway

Name: Actisense PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway
SKU: 106691
Price: 707.94 USD
Availability: InStock

$707.94

Quantity

PRO NMEA 0183 Multiplexer/NMEA 2000 Gateway Interconnectivity, reimagined!The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2KFeatures:<ul><li id="isPasted">Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.</li><li>Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.</li><li>Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.</li><li>Easy to configure using the web based UI, no need to manually enter and edit strings of text.</li><li>RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.</li><li>Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.</li><li>Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.</li><li>Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.</li><li>NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.</li><li>NMEA 2000 data streaming over Ethernet.</li><li>5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.</li><li id="isPasted">Type-approved (RINA).</li><li>NMEA 0183 Ethernet streaming</li><li>NMEA 2000 Ethernet streaming</li><li>NMEA 2000 output via M12</li><li>5x Configurable Opto-isolated NMEA 0183 inputs.</li><li>2x Configurable ISO-Drive isolated NMEA 0183 outputs.</li><li>1x Bi-directional, configurable, isolated serial port.</li><li>Automatic baud rate matching on inputs.</li><li>Advanced data filtering / routing.</li><li>Free firmware updates making the device future-proof.</li><li>Diagnostic LEDs on all inputs and outputs.</li><li>Bi-colour status LED.</li><li>Panel mountable.</li><li>Stainless Steel housing for added durability</li><li id="isPasted">Quick and easy to install</li><li>Configuration using standard web browser, no PC operating system compatibility issues</li><li>Advanced features solve NMEA 0183 data routing problems</li><li>Fully isolated with ISO-Drive technology for peace of mind</li><li>Easy firmware updates make the device future-proof</li><li>Type Approved (RINA)</li></ul>Technical Specifications:Power Supply <ul><li id="isPasted">Input supply voltage - 9 to 35 V DC</li><li>Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)</li><li>Input protection - Continuous reverse polarity, transient overvoltage and ESD protection</li><li>Power indicator - LED, Blue – indicates unit is functioning correctly</li><li>Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)</li></ul>NMEA 0183 Port – Listener & Talker<ul><li id="isPasted">Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners</li><li>Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers</li><li>Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible</li><li>Speed / baud rate - 4800 to 38400 bps</li><li>Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm</li><li>Talker Output Current Drive - 20 mA maximum per output</li><li>Talker Output Protection - Short circuit and ESD</li><li>Talker Data Indicator - LED, Orange (Flashes with data rate)</li><li>Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)</li><li>Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection</li><li>Listener Data Indicator - LED, Green (Flashes with data rate)</li><li>Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)</li></ul>Serial Port <ul><li id="isPasted">Compatibility - RS422 & RS232 compatible. RS485 Listener compatible</li><li>Speed / baud rate - 115200 bps</li><li>Output voltage drive - >= 2.1V (differential) into 100 ohm</li><li>Output current drive - 20 mA max.</li><li>Output protection - Short circuit and ESD</li><li>Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)</li><li>Input protection - Current limited, overdrive protection to 40 VDC and ESD protection</li><li>Data Indicators - LED’s: Green = Receive, Orange = Transmit</li><li>Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)</li></ul>Ethernet Port <ul><li id="isPasted">Host interface - 10/100BaseT, automatic polarity detection</li><li>Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms</li><li>Connector - RJ45</li><li>Indicators - Green – Link, Yellow – 100 Mbps</li></ul>NMEA 2000 Port <ul><li id="isPasted">Compatibility - NMEA 2000 Certification Pending</li><li>Speed / baud rate - 250 kbps</li><li>Connectivity - M12 male (A-coded) connector</li></ul>Isolation <ul><li id="isPasted">NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V</li><li>NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V</li><li>Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V</li><li>Ethernet Port - 2kv for 60s</li><li>NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V</li></ul>Mechanical <ul><li id="isPasted">Housing Material - 316 Stainless Steel</li><li>Dimensions - 139mm (W) x 98mm (H) x 26mm (D)</li><li>Weight - 360g</li><li>Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)</li></ul>Approvals and Certifications <ul><li id="isPasted">EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7</li><li>Compass Safe Distance - 300mm</li><li>Type Approval Certificate - RINA</li><li>Operating Temperature - -25 to +70°C</li><li>Storage Temperature - -40 to +85°C</li><li>Relative Humidity (RH) - 95% @ 55°C</li><li>Environmental Protection - IP40</li><li>Guarantee - 5 Years when registered</li></ul>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
