Actisense PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet &

Name: Actisense PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet &
SKU: 111781
Price: 590.23 USD
Availability: InStock

$590.23

Quantity

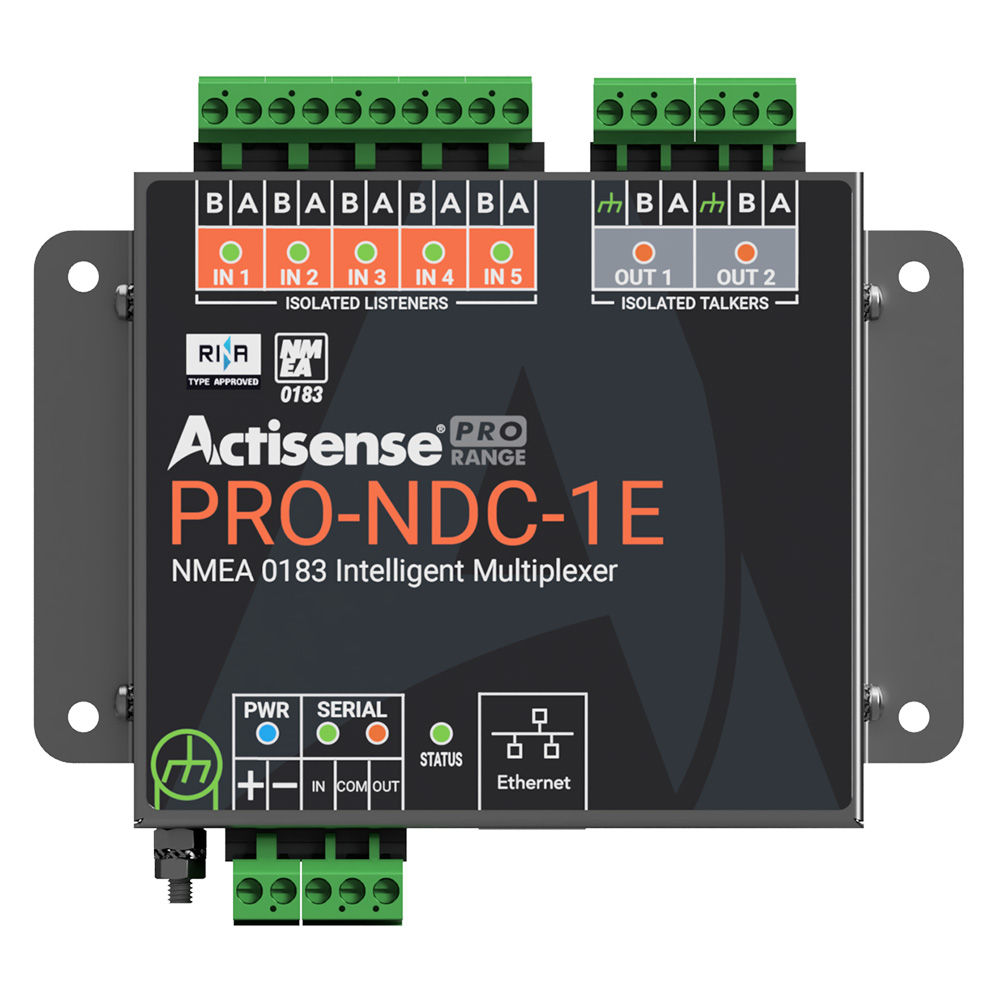

PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial ConnectionsThe PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.Features:<ul><li id="isPasted">Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input.</li><li>Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.</li><li>Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.</li><li>Easy to configure using the web-based UI, no need to manually enter and edit strings of text.</li><li>RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations.</li><li>Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.</li><li>NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.</li><li>5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.</li><li id="isPasted">Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology)</li><li>A serial port can be used as an additional input/output</li><li>Ethernet port supports direct and network connections</li><li>NMEA 0183 streaming via Ethernet</li><li>Configurable input and output baud rates</li><li>Allows Data combining and rate conversion</li><li>2 independent Autoswitch virtual inputs with priority</li><li>Isolation from battery supply</li><li>Diagnostic LED’s</li><li>Optional DIN rail mount</li><li>Type Approved</li><li id="isPasted">Quick and easy to install</li><li>Configuration using a standard web browser, no PC operating system compatibility issues</li><li>Advanced features solve NMEA 0183 data routing problems</li><li>Fully isolated with ISO-Drive technology for peace of mind</li><li>Easy firmware updates make the device future-proof</li></ul>Technical Specifications:Power Supply<ul><li id="isPasted">Input supply voltage - 9 to 35 V DC </li><li>Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) </li><li>Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection </li><li>Power indicator - LED, Blue – indicates unit is functioning correctly </li><li>Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)</li></ul>NMEA 0183 Port – Listener & Talker <ul><li id="isPasted">Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners </li><li>Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers </li><li>Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible </li><li>Speed/baud rate - 4800 to 38400 bps </li><li>Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm </li><li>Talker Output Current Drive - 20 mA maximum per output </li><li>Talker Output Protection - Short circuit and ESD </li><li>Talker Data Indicator - LED, Orange (Flashes with data rate) </li><li>Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) </li><li>Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection </li><li>Listener Data Indicator - LED, Green (Flashes with data rate) </li><li>Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)</li></ul>Serial Port <ul><li id="isPasted">Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible </li><li>Speed/baud rate - 115200 bps </li><li>Output voltage drive - >= 2.1V (differential) into 100 ohms </li><li>Output current drive - 20 mA max </li><li>Output protection - Short circuit and ESD </li><li>Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) </li><li>Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection </li><li>Data Indicators - LED’s: Green = Receive, Orange = Transmit </li><li>Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)</li></ul>Ethernet Port <ul><li id="isPasted">Host interface - 10/100BaseT, automatic polarity detection </li><li>Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms </li><li>Connector - RJ45 </li><li>Indicators - Green – Link, Yellow – 100 Mbps</li></ul>Isolation<ul><li id="isPasted">NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V </li><li>NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V </li><li>Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V </li><li>Ethernet Port - 2kv for 60s</li></ul>Mechanical <ul><li id="isPasted">Housing Material - 316 Stainless Steel </li><li>Dimensions - 139mm (W) x 98mm (H) x 26mm (D) </li><li>Weight - 360g </li><li>Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)</li></ul>Approvals and Certifications <ul><li id="isPasted">EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 </li><li>Compass Safe Distance - 300mm </li><li>Type Approval Certificate - RINA </li><li>Operating Temperature - -25 to +70°C </li><li>Storage Temperature - -40 to +85°C </li><li>Relative Humidity (RH) - 95% @ 55°C </li><li>Environmental Protection - IP40 </li><li>Guarantee - 3 years (5 Years if registered)</li></ul>This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
